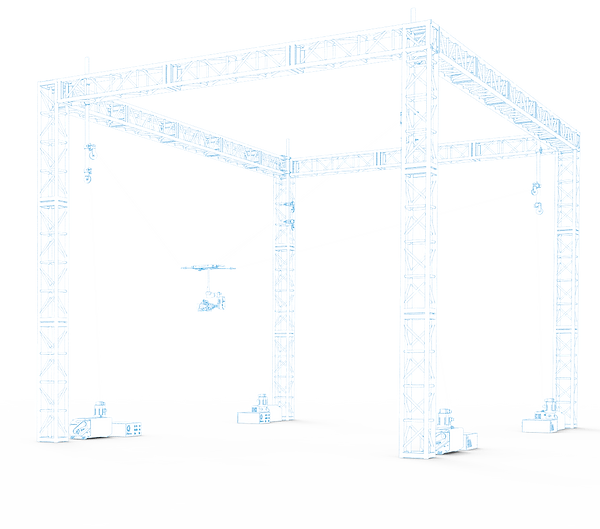

Meet DynamiCam – the world's smallest

3-axis cable camera system.

DynamiCam provides a complete gyro-stabilized camera movement solution that's designed to meet the highest standards of the broadcast industry, while keeping the needs of small venues and productions in mind.

Whether for permanent venue installation or for a short studio production, DynamiCam offers a smart and dynamic aerial videography solution.

Working area of up to 80X80 meters / 262X262 feet

Maximum speed of 3 meters

/ 10 feet per second

Fully remote camera control for multi-camera environments

12V DC power supply for camera and gimbal

Live video feed via fiber-optic cable

Mobility upgrade for temporary installations



gimbal-

3 axis stabilized head

Weight: 3.7 kg (+camera, lens, zoom mount 1 kg)

Length: 40 cm

Width: 40 cm

Height: 52 cm

Communication and video: Fiber Optic



Continuous 360 degree of pan rotation.
Built in Dual SDI to Dual/Single Fiber Optic converter.
Supports compact cameras, up to 2.7kg including lens.
12V DC power supply, communication and 4K signal transferred via winches. No battery required.





THIRD PARTY SUPPORTED DEVICES

gimbal & camerA control

console

Length: 30 cm

Width: 42 cm

Height: 7 cm

Communication: Fiber Optic

Remote Control: Pan, tilt, roll, focus, and zoom. Adjustable speed, ramp (expo) and direction.

PILOT CONTROL Console

+programmable gui

+Control box

Length: 30 cm
Width: 42 cm

Height: 7 cm


Safety:
Emergency stop button + Safety key
Safety limits, including minimum operating height limit


2 Joysticks for manual control (X,Y,Z)

Graphic User Interface (touch screen supported)


Programmable motion presets for precise repeatable multi-point motion, spline motion, in all 3 dimensions (X,Y,Z)

Custom user profile enables operators to save personal control settings: joystick sensitivity, joystick exponential curve, speed limits and more.

winches

+electric cabinets

4 x Winches

Weight: 43 kg (+motor 8.3 kg)

Length: 78.5 cm

Width: 32 cm

Height: 28 cm

4 x Electric Cabinets

Weight: 14

Height / Width: Standard 19 inch 4U rack

Length: 38.5 cm

Communication: EtherCAT by CAT7 Cable / Fiber Optic


Safety:
Emergency stop button on each unit
Automatic cable slack detection

DynamiCam system includes 4 low power consumption winches, which can be powered from a standard 16A 220V single phase wall socket. Pre-Installed in flight case and ready to use, no need for special rigging tools.

Optional Dual pulley kit, allows for non restricted placement of the winches; for example all 4 winches can be placed in one corner of the working area.

SKAARHOJ RCP, no extra hardware required



ATEM Software Control, requires ATEM Production Switchers
